Technology & Products

Lens Machining (OptiPro Systems)

5 Axis CNC Optical Griding Machines

Latest 5 axis control system, stable base, tool spindle, etc.
Highly precise grinding processing can be performed from Plane and Sphere to Aspheric surface and Freeform surface.
Setup can also be performed quickly in the operation screen which is easy to treat.（Technology）

	[New Product] High Precision Lens Generator: 5-80 mm Optics OptiPro 「PRO 80G」「PRO 80GTS」

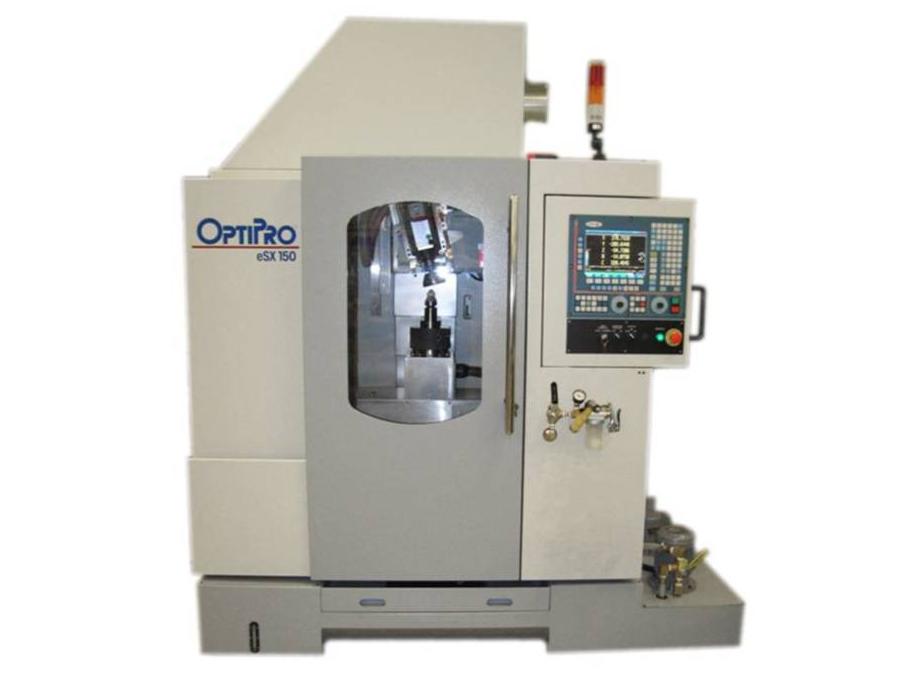

	[New Product] 5-Axis Grinding Platform: 5-150 mm Optics OptiPro 「eSX 150」
	[New Product] 5-Axis Grinding Platform: 5-300 mm Optics OptiPro 「eSX 300」
	[New Product] 5-Axis Grinding Platform: 10-500 mm Optics OptiPro 「SXL 500」

5 Axis CNC Aspheric/Freeform Optical Polishing Machines

Polishing head with specific technology is carried in platform of 5 Axis Control.
Polishing is possible as it is from Grinding surface in high-speed polish.
Plane, Sphere, Aspheric surface, and Freeform surface can be ground with high precision.（Technology）

[New Product]
UltraForm Finishing for Aspheres: 10-80 mm Optics

OptiPro 「PRO 80UFF」　　　　　　　　　　　　

[New Product]
UltraForm Finishing (UFF): 10-300 mm Optics

OptiPro 「UFF 300」　　　　　　　　　　　　　　

[New Product]
UltraForm Finishing (UFF): 10-500 mm Optics

OptiPro 「UFF 500」　　　　　　　　　　　　　　

Optical Measurement System

Interferometer

Twyman-Green Dynamic interferometers for measuring large diameter mirrors and optical systems.
Even in extreme environments such as vacuum chambers, over long measurement paths, adaptive optics, etc.
Extremely compact, motorized controls for on-machine and remote operation

4D Technology 「PhaseCam 6000」

Precise vertical interferometer tower for optical workshops with large measuring range.
Unique vibration damping system for perfect usage in production environment.

XONOX　Workshop Interferometer

Non-contact 3D Measurement System

	Portable, microscope-based, Dynamic optical profilometer for measuring surface roughness of large and small optics. Nano-topology of precision components, despite vibration and turbulence. 4D Technology 「NanoCam Sq」
	High resolution chromatic confocal point sensors for Non-contact 3D metrology STIL 「Optical pen & CCS」
	New sensor including both Confocal Chromatic and Confocal Spectral Interferometric technologies STIL 「STIL-DUO」
	High precison Non-Contact Metrology System Aspheres and Freeforms OptiPro「UltraSurf 5X」

Optical Lens

The aspheric surface lens which has an advantage of glass and a plastic

Hybrid Asperic Lens

MRF^® realizes highly precise optical component processing.

Advande in MRF
